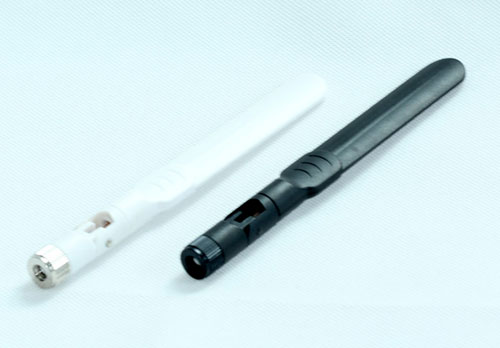

5.8G AP天线
5.8G AP antenna
Applications:
This is the specially designed for WLAN
network terminal antenna. The small dimension
And light structure make it easy to install.
Features:
5.2/5.5/5.8 GHz Broadband
5.8GHz ISM Band
5.8GHz W LAN Systems
5.8GHz Wireless Access systems
|
Electrical Specifications |
|
|
Model |
AC-Q58-2458W |
|
Frequency Range |
2400-2483/5150-5250/ 5725-5850MHz |
|
Gain |
3dBi |
|
VSWR |
≤1.8 |
|
Polarization |
Vertical |
|
Impedance |
50ohm |
|
Maximum Input Power |
50W |
|
Connector |
RP SMA/SMA Male |
|
Operating Temperature |
-40°C to+80°C |
|
Mechanical Specifications |
|
|
Antenna Dimension |
Φ21×160 mm |
|
Weight |
35g |
